Name: 4-20ma High Accuracy Electronic Pressure Transmitter Sensor Pressure Transducer
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80ma
Availability: InStock

Para casa > produtos > sensor da pressão do iot >

4-20ma High Accuracy Electronic Pressure Transmitter Sensor Pressure Transducer

4-20mA pressure transmitter sensor

high accuracy pressure transducer

electronic pressure sensor with warranty

Lugar de origem:

Chian

Marca:

WNK

Certificação:

CE/ROHS

Número do modelo:

WNK80ma

Contacte-nos

Solicite um orçamento

Detalhes do produto

Mídia medida:

Água, ar, gás, vapor

Material de moradia:

304SS, 316SS

Precisão:

00,5% FS

Faixa de pressão:

10kpa, -100kpa... 70Mpa

Aplicações:

Refrigerante de água-ar HVAC, automóvel

Sinal de saída:

4-20mA, 0,5-4,5V, 0-10V, 3,3V, I2C, RS485

Tipo de pressão:

Pressão de medição, pressão absoluta, pressão de vedação

Classificação IP:

IP65

Destacar:

4-20mA pressure transmitter sensor

high accuracy pressure transducer

electronic pressure sensor with warranty

Termos de pagamento e envio

Produtos relacionados

Vídeo

Wnk 4-20mA 0.5-4.5V I2C IOT Pressure Transmitter Sensor for Water Air Gas

Obtenha o melhor preço

Vídeo

4-20ma High Accuracy Electronic Pressure Transmitter Sensor Pressure Transducer

Obtenha o melhor preço

Vídeo

Low Cost Ceramic Air Compressor Water Truck Fuel Oil Gas Brake Pressure Sensor

Obtenha o melhor preço

Vídeo

Sensor de pressão de água WNK Transmissor de pressão do compressor de ar/Sensor de pressão de óleo do motor a combustível

Obtenha o melhor preço

Contacte-nos

86-551-65369655

Contacte agora

Descrição do produto

4-20mA High Accuracy Electronic Pressure Transmitter Sensor Pressure Transducer

Key Specifications

Attribute	Value
Measured media	Water, Air, Gas, Steam
Housing material	304SS, 316SS
Accuracy	0.5%FS
Pressure range	10kpa, -100kpa...70Mpa
Applications	Water Air Refrigerant HVAC, Automobile
Output signal	4-20mA, 0.5-4.5V, 0-10V, 3.3V, I2C, RS485
Pressure Type	Gauge Pressure, Absolute Pressure, Sealing Pressure
IP rating	IP65

Technical Details

Applicable media: Liquid, Gas

Pressure Range: 0-60bar

Pressure Type: Gauge Pressure, Absolute pressure, Sealing pressure

Output: 4-20mA/0.5-4.5V/1-5V/0-10V/I2C

Accuracy: 1%F.S.(Typical), 0.5%F.S.(Typical)

Power: 24VDC/12VDC/5VDC/3.3V

Compensation temperature: -20~85ºC

Ambient temperature: -40~125ºC

Working temperature: -40~125ºC

Temperature drift (zero): ±0.15% F.S. (-20~85ºC)

Temperature drift (full range): ±0.15% F.S. (-20~85ºC)

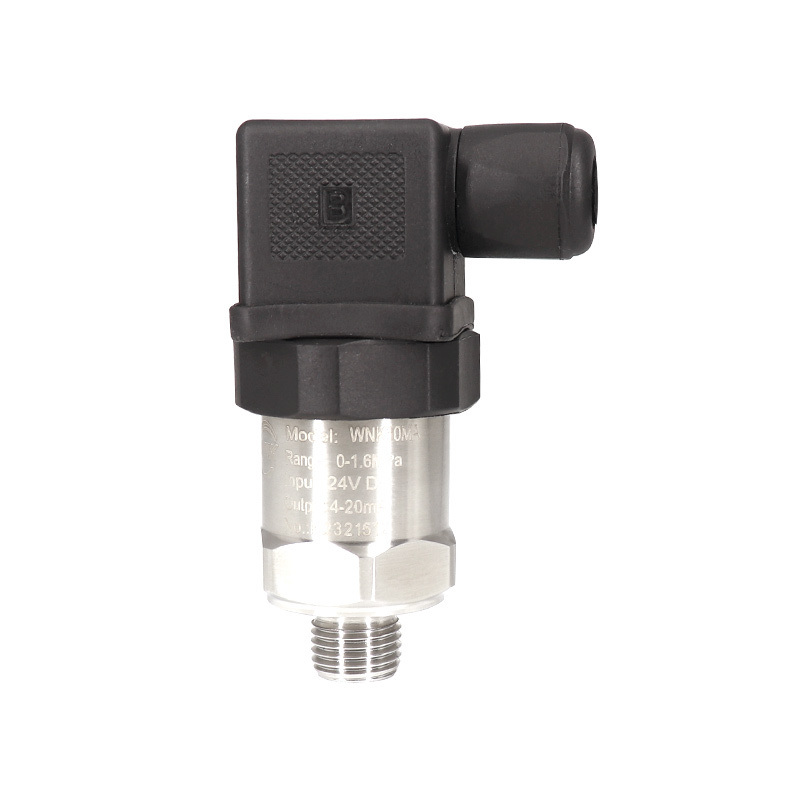

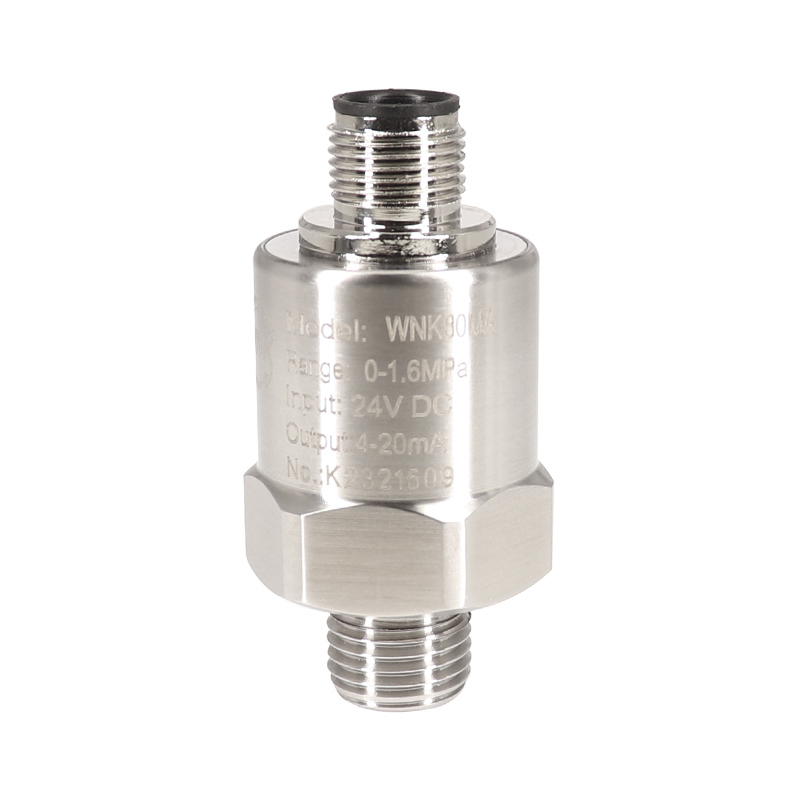

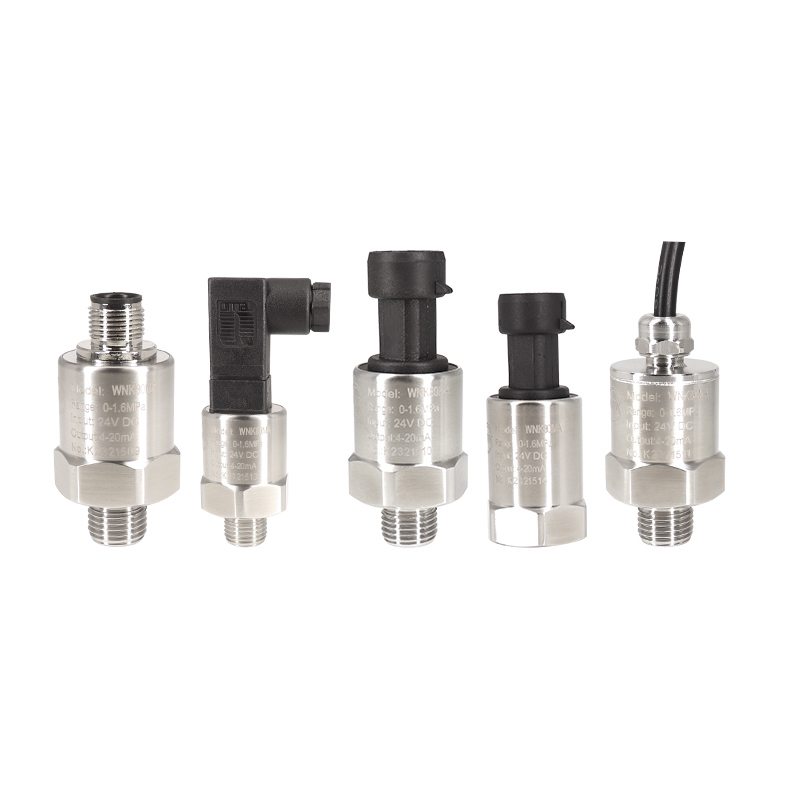

Power connection: Parkard, M12, DIN43650, Cable outlet

Mechanical connection: G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize

Housing material: 304 stainless steel (inner core is 316 stainless steel)

Protection: IP65

Product Overview

WNK80MA is a series of high performance compact pressure transmitter by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is 5~10 times of the range, completely solved poor overload in small range of other sensors. In addition to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. As high output and wide range of its core ceramic capacitive sensor, WNK80MA is especially suitable for harsh industrial environment pressure measurement.

Applications
