Lugar de origem:
Anhui, China
Marca:
WNK
Número do modelo:
WNK8010-TT

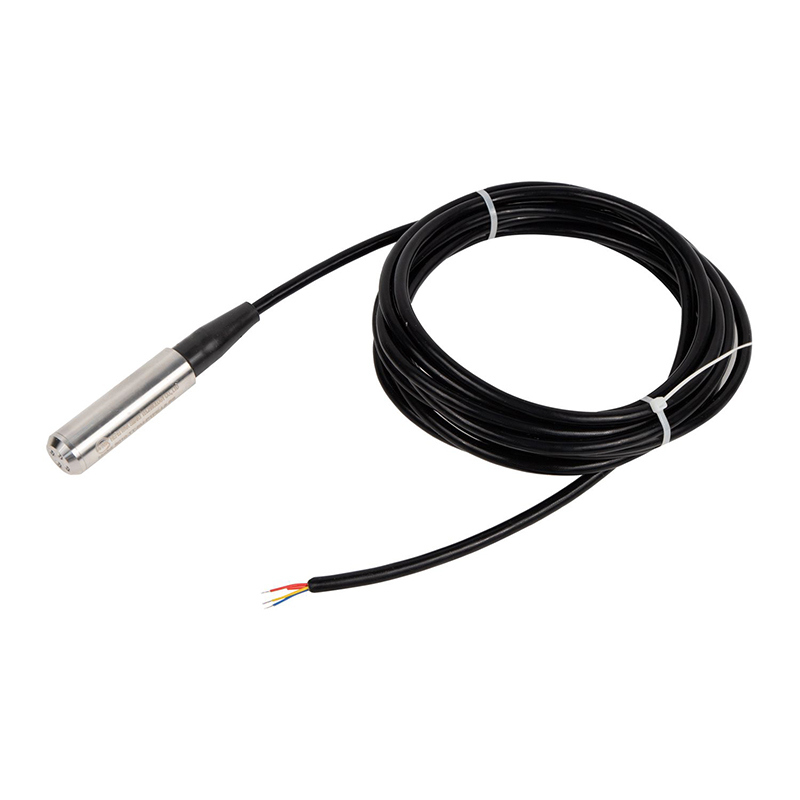

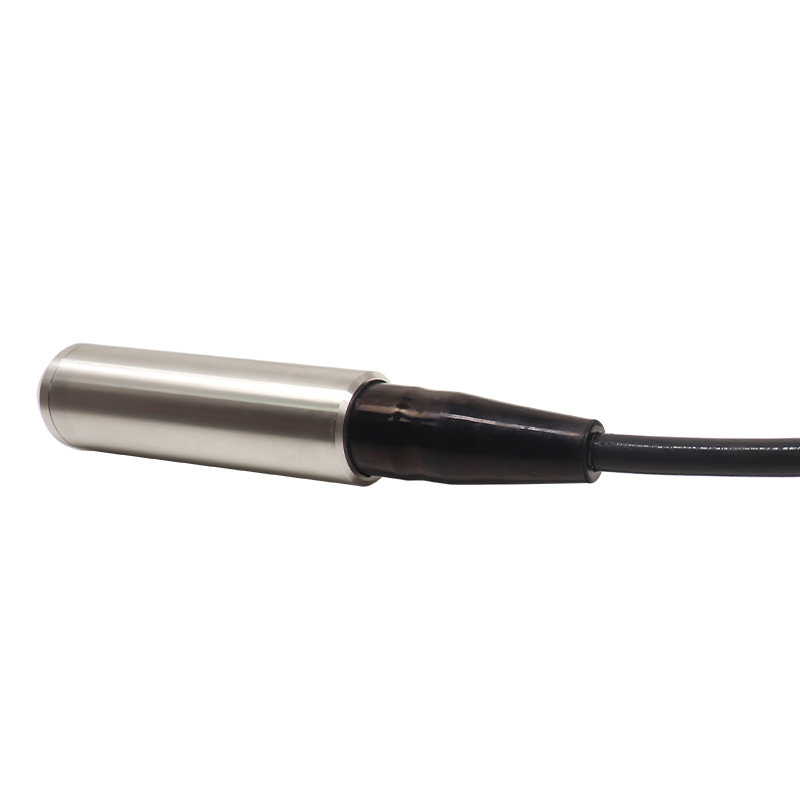

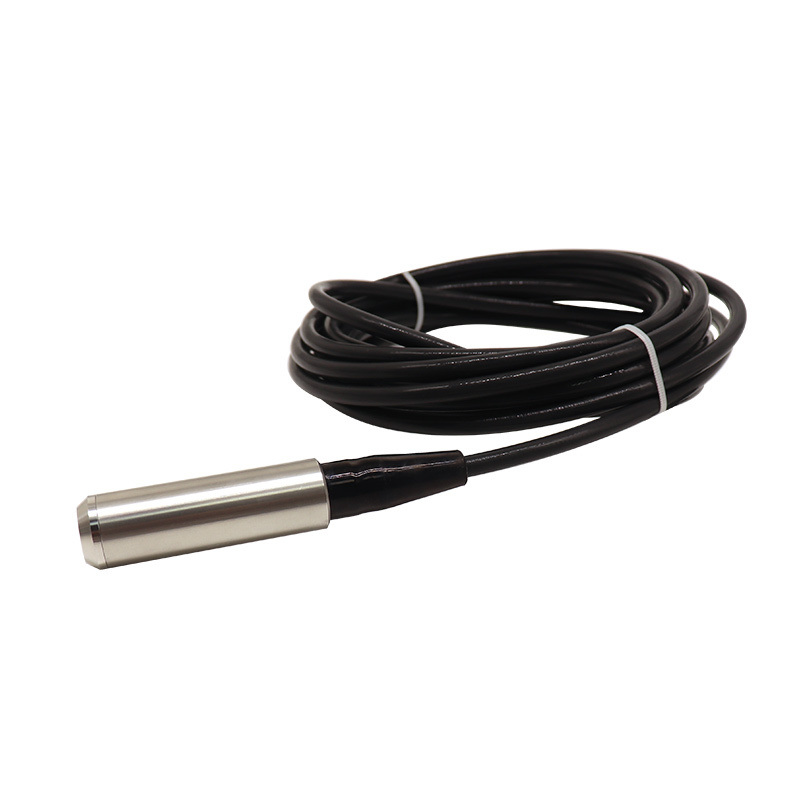

- Our WNK8010 liquid leve probe with high performance diffused silicon piezoresistive pressure sensor as the measuring element,
- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.
- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.
Applications
• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
|
Output |
4~20mA, 0-10mA, 0-5V, 1-5V, customization |
|
Level range |
0-0.5~200mH2O |
|
Overload |
150% of sensor range |
|
Measuring medium |
Liquid |
|
Accuracy |
±0.2%FS, ±0.5%FS |
|
Stability |
0.25%FS/ year |
|
Housing material |
Stainless steel |
|
Cable material |
Polyvinyl Fluoride, PTFE |
|
Power Supply |
24VDC |
|
Ambient temperature |
-20~85℃ |
|
Process temperature |
-20~85℃ |
|
Compensation temperature |
-20~85℃ |
|
Protection class |
IP68 |
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
