Name: ATEX CE 4-20mA 0.5-4.5V I2C Air Water Pressure Transdeucer Vacuum Absolute Pressure Sensor Transmitter
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Availability: InStock

Para casa > produtos > sensor da pressão do iot >

ATEX CE 4-20mA 0.5-4.5V I2C Air Water Pressure Transdeucer Vacuum Absolute Pressure Sensor Transmitter

ATEX CE pressure sensor

4-20mA pressure transmitter

I2C vacuum pressure transducer

Lugar de origem:

Chian

Marca:

WNK

Certificação:

CE/ROHS

Número do modelo:

WNK80MA

Contacte-nos

Solicite um orçamento

Detalhes do produto

Mídia medida:

Água, ar, gás, vapor

Material de moradia:

304Ss, 316Ss

Precisão:

0,5%de fs

Faixa de pressão:

10kpa, -100kpa ... 70mpa

Aplicações:

Refrigerante de ar de água HVAC, automóvel

Sinal de saída:

4-20mA, 0,5-4.5V, 0-10V, 3,3V, I2C, RS485

Tipo de pressão:

Pressão do medidor, pressão absoluta, pressão de vedação

Classificação IP:

IP65

Destacar:

ATEX CE pressure sensor

4-20mA pressure transmitter

I2C vacuum pressure transducer

Termos de pagamento e envio

Produtos relacionados

Vídeo

WNK 0-5V Pressure Sensor for Drinking Water Treatment Equipment

Obtenha o melhor preço

Vídeo

WNK 5V Pressure Transducer 200Psi Drinking Water Pressure Sensor 4-20mA

Obtenha o melhor preço

Vídeo

Sensor de pressão automática do combustível de óleo WNK 1/8NPT Thread 4-20mA saída 0,5-4,5V

Obtenha o melhor preço

Vídeo

Sensor de pressão de óleo combustível 0-100psi 0.5-4.5v 0-5V para Automotivo Maquinaria Design Robusto Conformidade CE RoHS

Obtenha o melhor preço

Contacte-nos

86-551-65369655

Contacte agora

Descrição do produto

Oil Pressure Sensor 4-20ma 0.5-4.5V I2C Vacuum Pressure Transmitter

Product Attributes

Attribute	Value
Measured media	Water, Air, Gas, Steam
Housing material	304SS, 316SS
Accuracy	0.5%FS
Pressure range	10kpa, -100kpa...70Mpa
Applications	Water Air Refrigerant HVAC, Automobile
Output signal	4-20mA, 0.5-4.5V, 0-10V, 3.3V, I2C, RS485
Pressure Type	Gauge Pressure, Absolute Pressure, Sealing Pressure
IP rating	IP65

Product Description

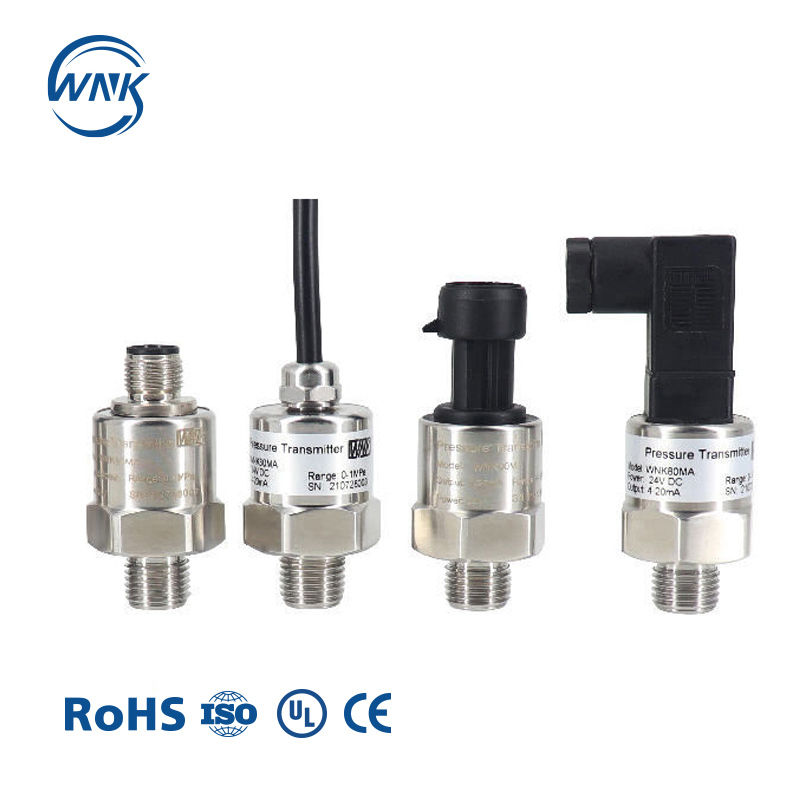

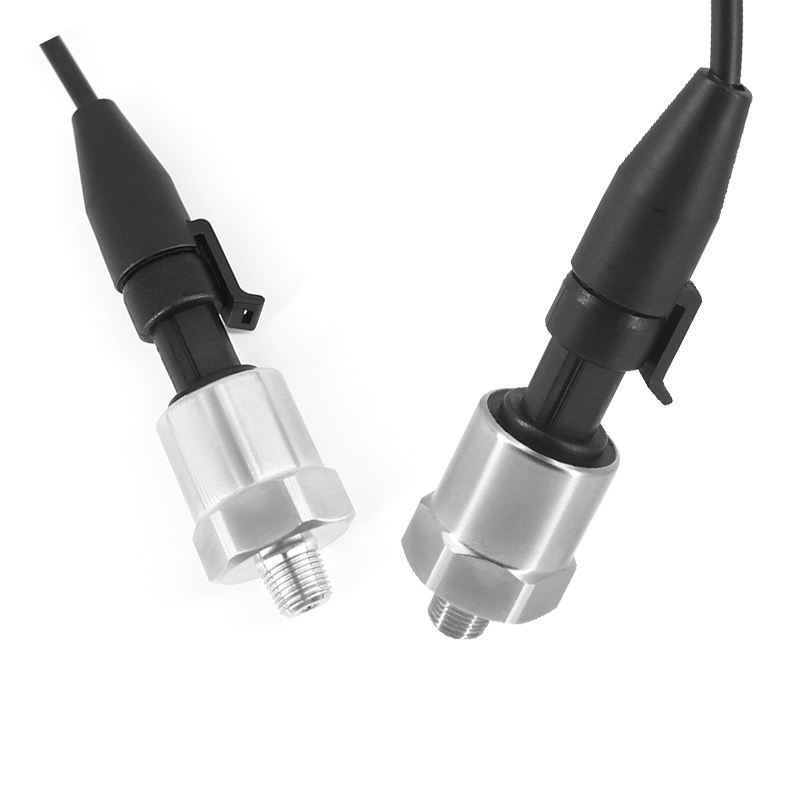

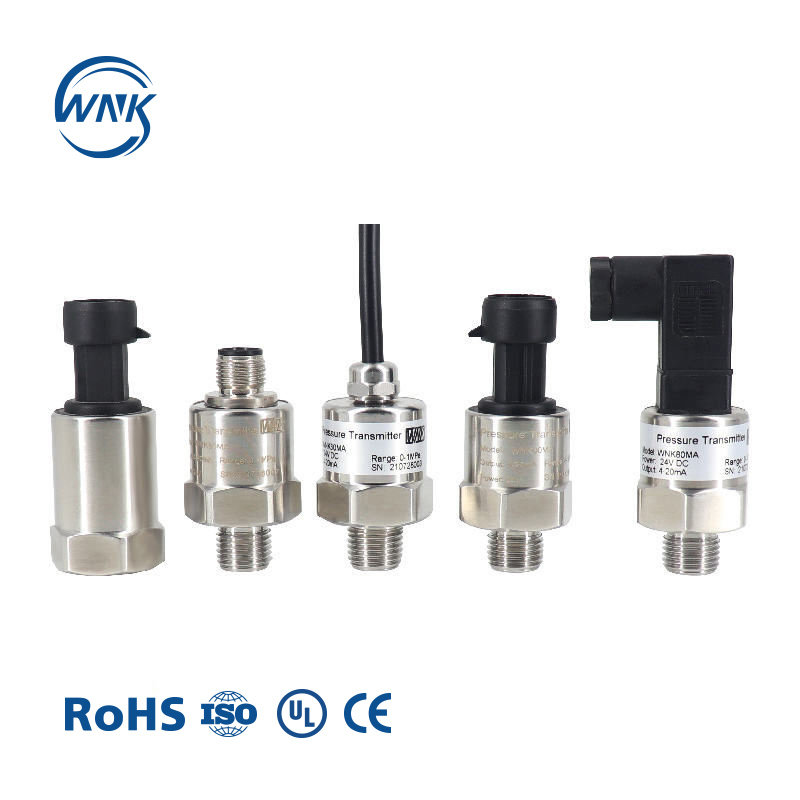

WNK81MA is silicon oil filled pressure transducer, using imported ASCI signal conditioning chip and diffused silicon oil filled sensor core. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. With long-term stability and high accuracy, it is widely used in the pressure measurement and control fields of HVAC, Auto, Pumping, water treatment and more. Certified with UL, RoHs, Reach, CE, UKCA, WNK81mA will quickly help you expand your market.

Applications

Automobile, Compressor and Refrigeration Industry-Engineering machinery
Pressure control and monitor
Water treatment system
Hydraulic and Pneumatics
HAVC and BAS Control
Pump, fitness equipment, household appliances
Factory Automation
Fluid Control and Instrumentation Systems

Technical Specifications

Specification	Value
Applicable media	Liquid, Gas
Pressure Range	0-60bar/-1-700Bar
Pressure Type	Gauge Pressure, Absolute pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1-5V/0-10V/I2C
Accuracy	0.5%F.S./1%FS (Typical)
Power Supply	24VDC/12VDC/5VDC/3.3V
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Parkard, M12, DIN43650, Cable outlet
Mechanical connection	G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material	304 stainless steel (inner core is 316 stainless steel)
Protection	IP65
