Name: WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010-19
Price: 42.00 USD
Availability: InStock

Para casa > produtos > Transmissor do nível de água >

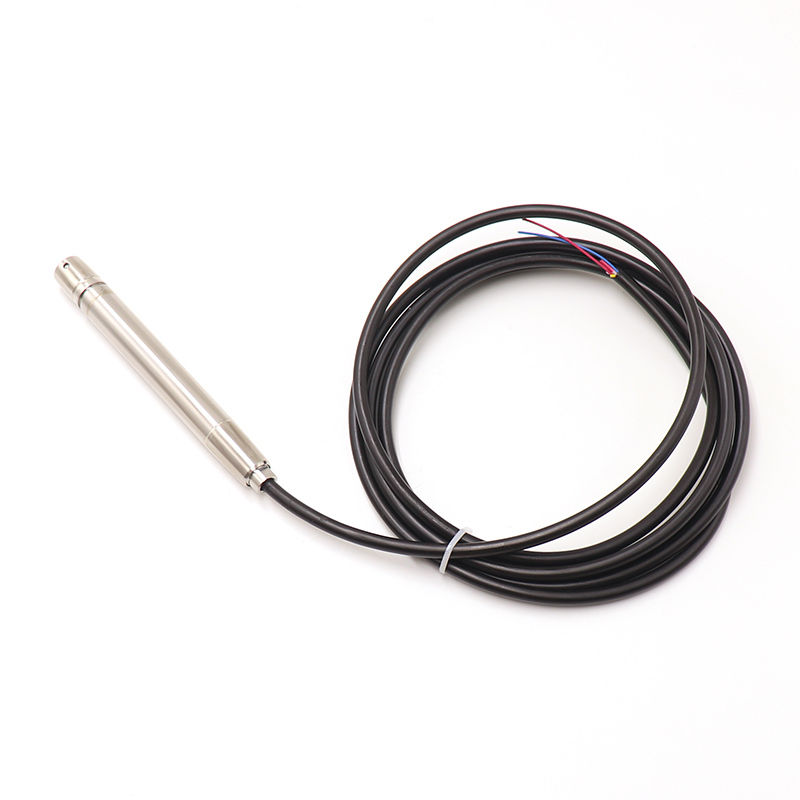

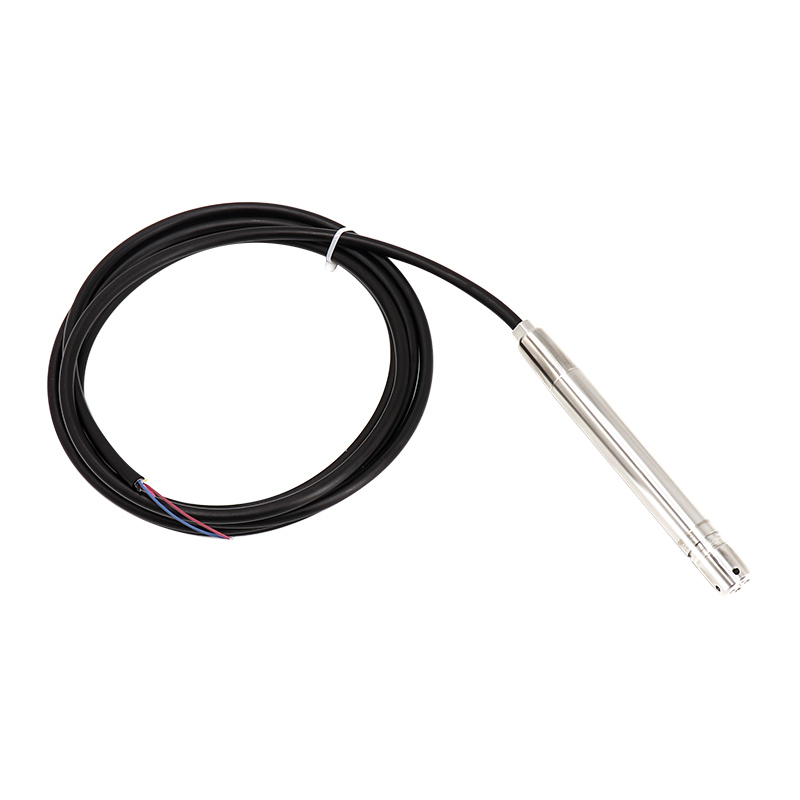

WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well

19mm submersible water level sensor

deep well water level transmitter

small diameter borehole sensor

Lugar de origem:

Anhui, China

Marca:

WNK

Número do modelo:

WNK8010-19

Contacte-nos

Solicite um orçamento

Detalhes do produto

Garantia:

1 ano

Suporte personalizado:

OEM, ODM

Intervalo de pressão::

0... 2 a 200 metros

Saída:

4-20mA, 0-5V, 1-5V, 0,5-4,5V, 0-10V

Precisão:

00,2% FS, 0,5% FS,

Fonte de energia:

12~36VDC

Classe de proteção:

IP68

Aplicativo:

Água de chuva, água potável, águas residuais, esgotos, águas do mar

Material de moradia:

304SS, 316L

Temperatura operacional::

-40~85 ℃

Tipo:

Medidor

Serviço OEM:

OEM, ODM, personalização disponível

Porta:

SHANGHAI/NINGBO

Destacar:

19mm submersible water level sensor

deep well water level transmitter

small diameter borehole sensor

Termos de pagamento e envio

Quantidade de ordem mínima

1pcs

Preço

$35.00 - $50.00/Pieces

Detalhes da embalagem

Cada conjunto numa caixa individual, protegida com espuma.

Tempo de entrega

5-8 dias de trabalho

Termos de pagamento

T/T, Western Union, MoneyGram, PayPal

Habilidade da fonte

2000 peças/peças por mês Sensor de pressão

Produtos relacionados

Vídeo

WNK ATEX Explosion Proof LCD Display Liquid Level Sensor With 4-20mA for Water Tank

Obtenha o melhor preço

Vídeo

WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well

Obtenha o melhor preço

Vídeo

WNK Submersible Hydrostatic Water Level Sensor Probe for River Tank Liquid Level Transmission Pressure Transmitter

Obtenha o melhor preço

Vídeo

316L Stainless Steel 4-20mA RS485 1-10V Liquid Level Transmitter Submersible Water Diesel Fuel Tank Level Sensors

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

Product Description

Output	4-20mA, 0-5V, 1-5V, customization
Measured Range	0-0.5~200mH2O
Max overload	150% of sensor range
Pressure Type	Gage,Absolute
Accuracy	±0.2% FS/year
Long Term Stability	±0.25% FS/year
Housing Material	Stainless steel
Cable Material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Operating Temperature	-30~85℃
Compensation Temperature	-20~70℃
Protection Class	IP68

WNK8010-19 deep well water level sensor has high accuracy, small volume,stability,plus resistance to abrasion,oil,acid&alkali and high intensity gas lead cable ensured that it can meet the different occasions measurement requirements.

no-polarity two wire current output.

♦ It is widely used in well, standpipe, borewell, sewage, river and lakes treatment as well as channel, large rivers, l reservoirs and coastline monitoring.

♦ This product has got intrinsic safety certification,explosion proof certification and CE certification.

Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price

Size/Principle
