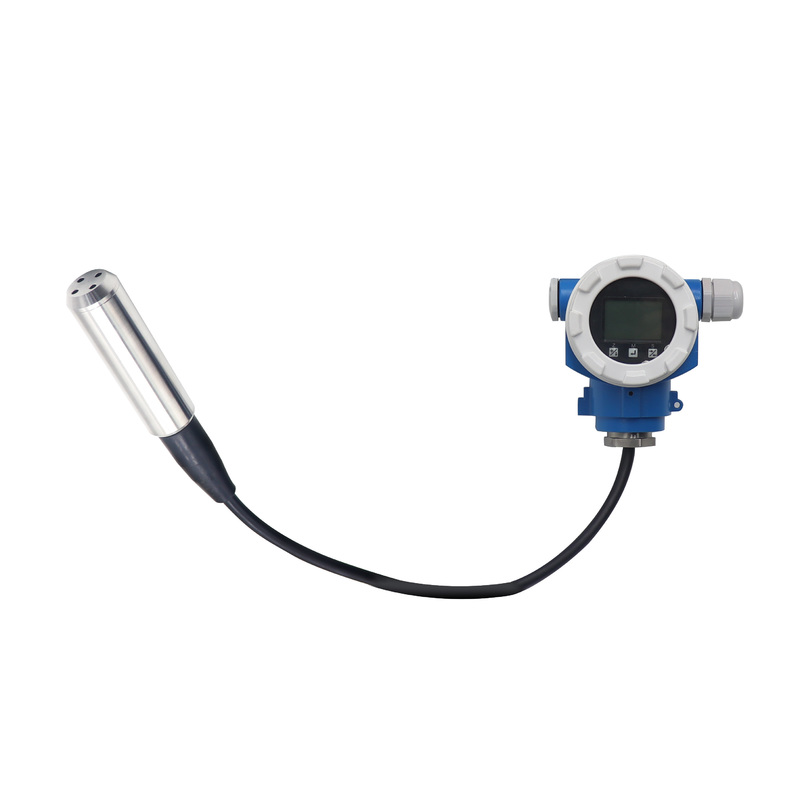

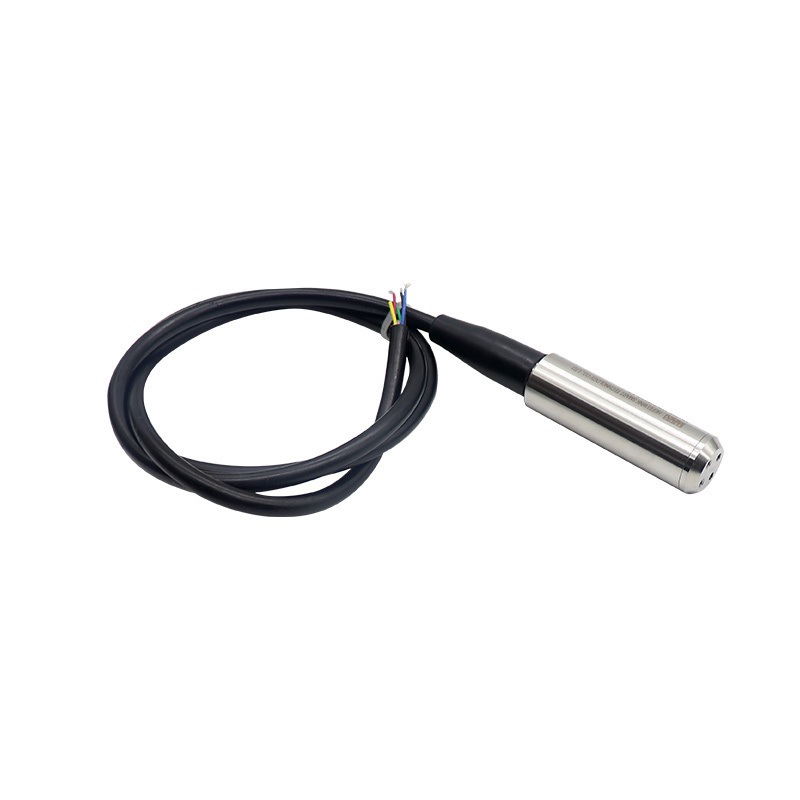

Name: ATEX Explosion Proof IP68 Submersible Water Tank Level Sensor With 4~20mA RS485 Output
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010-TT
Price: 42.00 USD
Availability: InStock

Para casa > produtos > Transmissor do nível de água >

ATEX Explosion Proof IP68 Submersible Water Tank Level Sensor With 4~20mA RS485 Output

ATEX explosion proof water level sensor

submersible water tank level transmitter

RS485 output water level sensor

Lugar de origem:

Anhui, China

Marca:

WNK

Número do modelo:

WNK8010-TT

Contacte-nos

Solicite um orçamento

Detalhes do produto

Garantia:

1 ano

Suporte personalizado:

OEM, ODM

Intervalo de pressão::

0... 2 a 200 metros

Saída:

4-20mA, 0-5V, 1-5V, 0,5-4,5V, 0-10V

Precisão:

00,2% FS, 0,5% FS,

Fonte de energia:

12~36VDC

Classe de proteção:

IP68

Aplicação:

Água de chuva, água potável, águas residuais, esgotos, águas do mar

Material de moradia:

304SS, 316L

Temperatura operacional::

-40~85 ℃

Tipo:

Medidor

Serviço OEM:

OEM, ODM, personalização disponível

Porta:

SHANGHAI/NINGBO

Destacar:

ATEX explosion proof water level sensor

submersible water tank level transmitter

RS485 output water level sensor

Termos de pagamento e envio

Quantidade de ordem mínima

1pcs

Preço

$35.00 - $50.00/Pieces

Detalhes da embalagem

Cada conjunto numa caixa individual, protegida com espuma.

Tempo de entrega

5-8 dias de trabalho

Termos de pagamento

T/T, Western Union, MoneyGram, PayPal

Habilidade da fonte

2000 peças/peças por mês Sensor de pressão

Produtos relacionados

Vídeo

WNK ATEX Explosion Proof LCD Display Liquid Level Sensor With 4-20mA for Water Tank

Obtenha o melhor preço

Vídeo

WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well

Obtenha o melhor preço

Vídeo

WNK Submersible Hydrostatic Water Level Sensor Probe for River Tank Liquid Level Transmission Pressure Transmitter

Obtenha o melhor preço

Vídeo

316L Stainless Steel 4-20mA RS485 1-10V Liquid Level Transmitter Submersible Water Diesel Fuel Tank Level Sensors

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

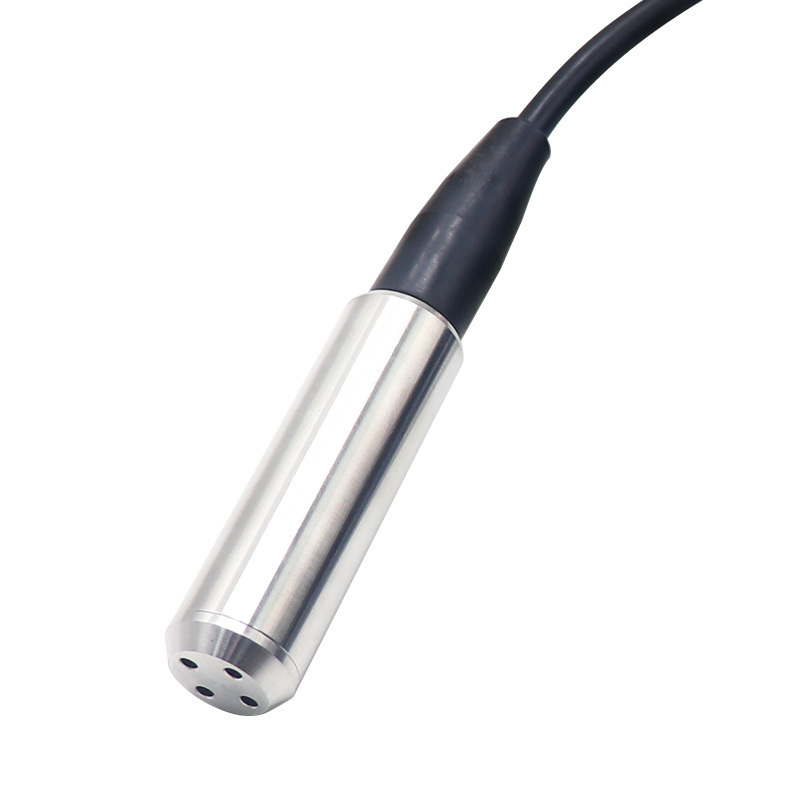

WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.

Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by
customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price

Output	4-20mA, 0-5V, 1-5V, customization
Measured Range	0-0.5~200mH2O
Max overload	150% of sensor range
Applicable Media	Liquid, Water
Accuracy	≤ ±0.2%FS,
Long Term Stability	±0.25% FS/year
Housing Material	Stainless steel
Cable Material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Operating Temperature	-30~85℃
Compensation Temperature	-20~70℃
Protection Class	IP68
