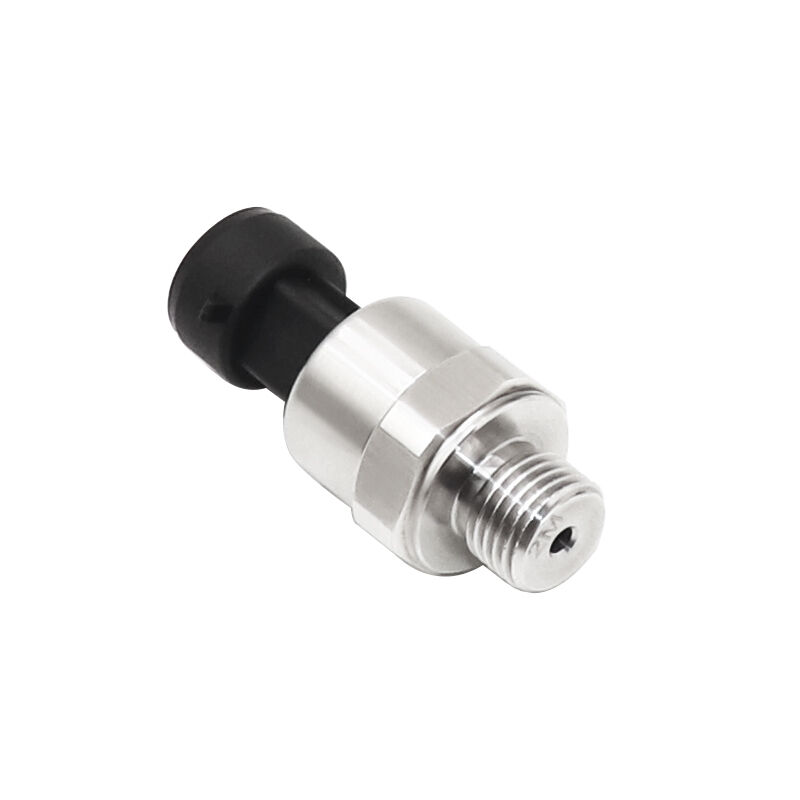

Name: WNK 0.5-4.5V G1/4 Coffee Machine Pressure Sensor Transmitter
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK125P
Availability: InStock

Para casa > produtos > sensor da pressão do iot >

WNK 0.5-4.5V G1/4 Coffee Machine Pressure Sensor Transmitter

G1/4 coffee machine pressure sensor

0.5-4.5V pressure transmitter

IOT coffee machine sensor

Lugar de origem:

Chian

Marca:

WNK

Número do modelo:

WNK125P

Contacte-nos

Solicite um orçamento

Detalhes do produto

Temperatura de armazenamento:

-50 ℃ ~ 135c

MEADIUM:

Óleo do motor, óleo de poe, refrigerante, gás, água ou líquido

Precisão:

+1%Fs (linearidade, histerese, repetibilidade, calibração)

Conector elétrico:

Saída de packard/ cabo

Faixa de pressão:

0 ~ 5bar, 0 ~ 10bar, 0 ~ 20bar, 0 ~ 40bar, (cutomizado)

Saída:

0,5V ~ 4,5V DC, (10%-90%VCC)

Conexão do processo:

G1/ 4, 7/16-Nffemale, (cusomizado)

Material:

Habitação 304 SST; Peças molhadas 316L

Destacar:

G1/4 coffee machine pressure sensor

0.5-4.5V pressure transmitter

IOT coffee machine sensor

Termos de pagamento e envio

Produtos relacionados

Vídeo

Food Grade 316 Pressure Sensor Transmitter 5V Output NPT1/4 for Coffee Machine

Obtenha o melhor preço

Vídeo

Transdutor de pressão WNK com transmissor de sensor de pressão de vácuo absoluto industrial universal 4-20mA

Obtenha o melhor preço

Vídeo

Sensor de transmissão de pressão de água WNK 4-20ma para HVAC e tratamento de água

Obtenha o melhor preço

Vídeo

WNK 0-10bar 150Psi Npt 1/8 0.5-4.5V Transdutor de Sensor de Pressão de Água para Ar e Gás

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

WNK Pressure Sensor for Coffee Machine

Product Description

The WNK125P is a diffusible silicon oil-filled pressure sensor designed forautomotive use. The element is made with a fully welded 316L diaphragm anddoes not require any O-ring seals that could come into contact with the pressuremedium, making it compatible with all types of liquids. The absence of anymoving parts results in a longer service life. With high temperature stability andaccuracy,this pressure sensor is mainly used in automotive, transmission, airconditioning and oil pressure measurement applications.

Feature

Multiple process connection options for easy installation. 1% typical accuracy, providing excellent accuracy for critical applications. Factory calibrated, no field calibration required. Plug-and-play reliability. Rugged, compact design saves installation space. OEM/ODM available to accommodate special needs.

Model	WNK125P
Power Supply	4.75~5.25VDC(( With reverse polarity protecticion overvoltage protection 32V DC
Supply current	15mA MAX
Pressure range	0~5Bar,0~10Bar,0~20Bar,0~40Bar,(Cutomized)
Output	0.5V~4.5V DC,(10%-90%VCC)
Process Connection	G1/4,7/16-UNFfemale,(cusomized)
Electrical connector	Pack
Working Temperature	-40℃C~130℃℃
Storage Temperature	-50℃~135C
Safe Pressure	1.5~2 time of the pressure range
Burst Pressyre	100Bar G
Accuracy	+1%F.S( Linearity,Hysteresis, Repeatability, Calibration)
Total Error Band	Static error band @25℃,5VDC,+3%(-30℃~125°℃)
Meadium	Engine oil, POE oil, refrigerant, gas, water or liquid
Mounting Torque	10~20N·m
Anti-freeze function	The sensor has no anti-freezing function when the sensor's working medium is water.
Material	Housing 304 SST; wetted parts 316L
