Name: Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK125SP
Availability: InStock

Para casa > produtos > sensor da pressão do iot >

Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine

diffused silicon pressure sensor

oil-filled coffee machine sensor

IoT pressure sensor with warranty

Lugar de origem:

CHIAN

Marca:

WNK

Número do modelo:

WNK125SP

Contacte-nos

Solicite um orçamento

Detalhes do produto

Conexão mecânica:

M6*1, Personalizado

Mídia aplicável:

líquido, gás

Tipo de pressão:

Pressão de medidor, pressão absoluta

Faixa de erro do Toal:

±1,0%

Faixa de pressão:

0-5bar, 0~10bar, 0~20bar, 0~40bar

Fonte de energia:

5 VCC

Saída:

0.5~4.5V, I2C

Precisão:

±1%FS

Destacar:

diffused silicon pressure sensor

oil-filled coffee machine sensor

IoT pressure sensor with warranty

Termos de pagamento e envio

Produtos relacionados

Vídeo

WNK 0.5-4.5V I2C M6 Water Pressure Sensor Transducer for Coffee Machine

Obtenha o melhor preço

Vídeo

ATEX CE 4-20mA 0,5-4,5V I2C -100kpa-100MP Ar Transduzidor de pressão de água Sensor de pressão absoluta de vácuo Transmissor

Obtenha o melhor preço

Vídeo

Sensor de Pressão WNK125P 0.5~4.5V 150PSI Sensor MAP Sensor de Pressão Automotivo 5Bar

Obtenha o melhor preço

Vídeo

Sensor de Pressão Compacto de Baixo Custo WNK 0.5-4.5V para Ar Água Óleo

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

WNK Low Cost Pressure Sensor for Beer Coffee Machine

Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine 0

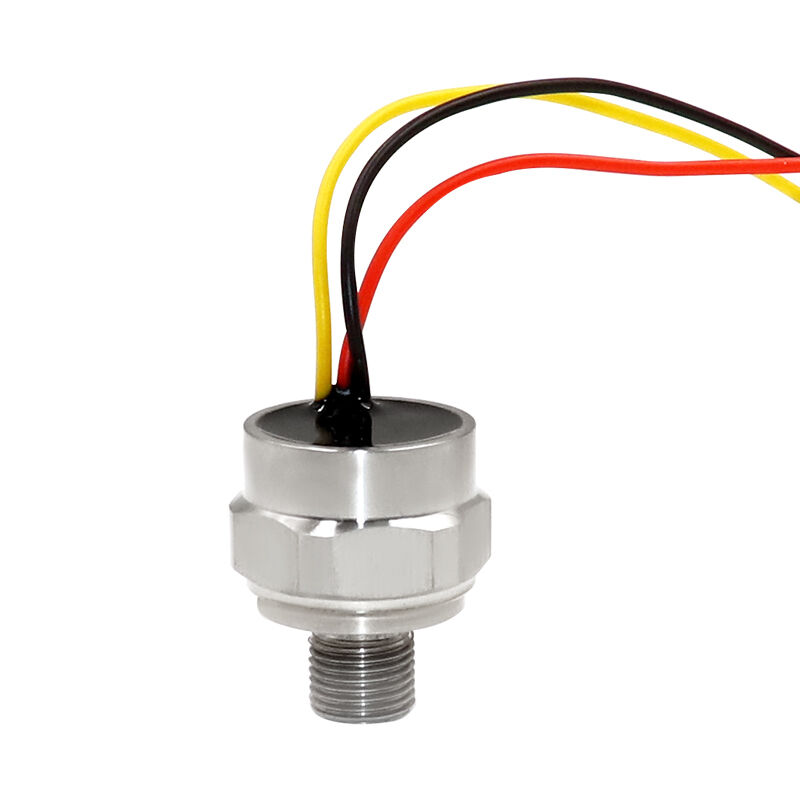

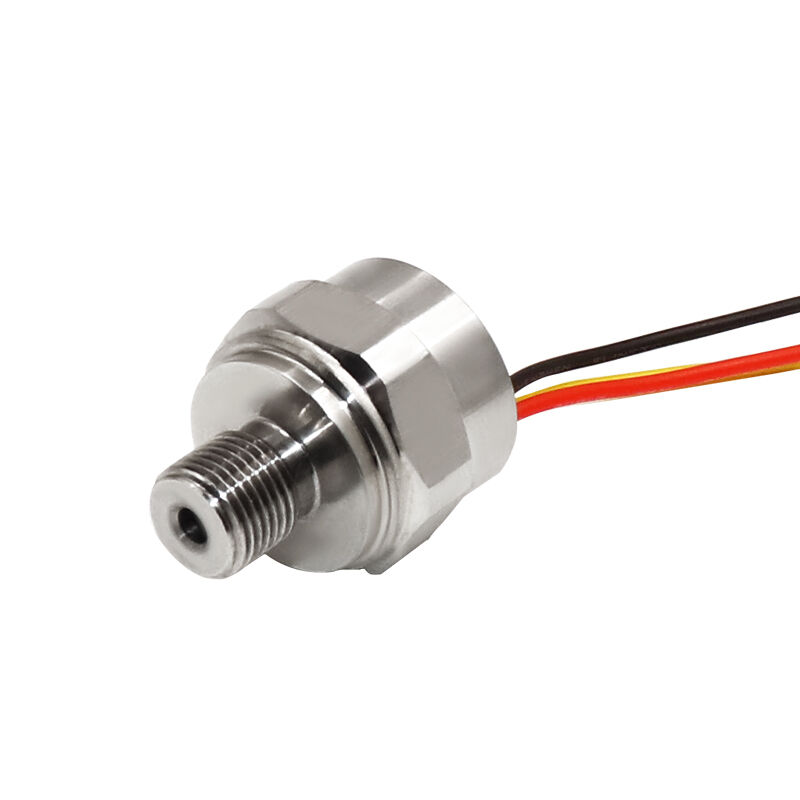

The WNK125PS is a diffused silicon oil-filled pressure sensor designed for automotive use. The element is made with a fully welded 316L diaphragm and doses not require and O-ring seals that could come into contact with the pressure medium, making it compatible with all types of liuqids. The absence of any moving parts results in a longer service life. With high temperature stability and accuracy, this pressure sensor is mainly used in Coffee Machine, Water Dispenser, Water Meter, automotive etc.

Applicable media	Liquid, Gas
Pressure Range	5bar,10bar,20bar,40bar
Pressure measurment	Gauge Pressure,Absolute pressure
Output	0.5~4.5V, I2C
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.(Typical)
Power supply	5VDC
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Power(electrical) connect	Customization Connector, Cable outlet
Mechanical Connection	M6*1
Housing Material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP68

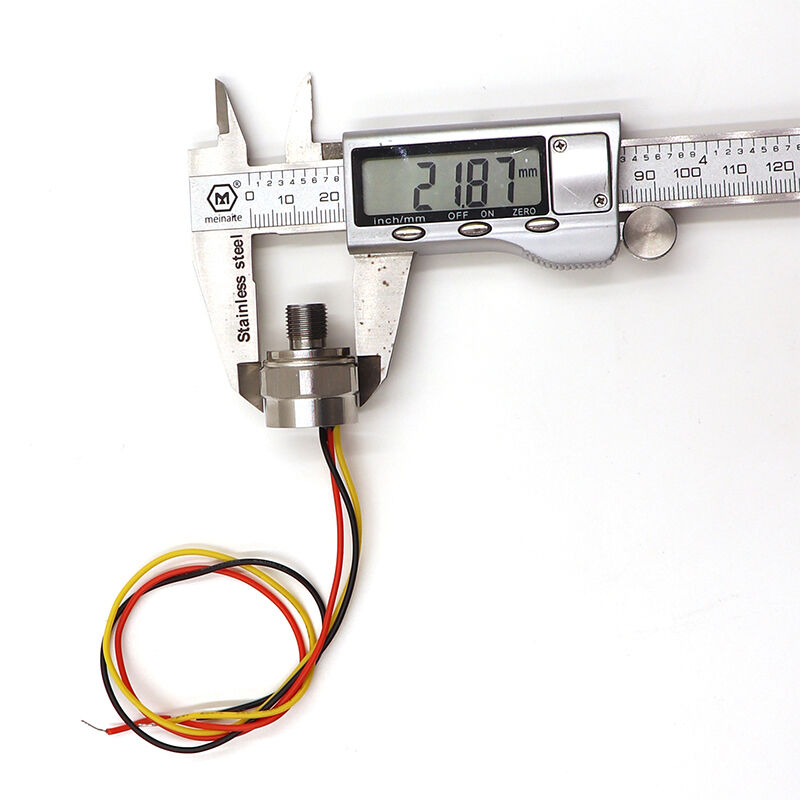

Dimensions

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea

If you have any questions, please feel free to contact me
